Maxx CNC Evo-3 Aluminum Hopup Chamber

The Maxx CNC Evo-3 Aluminum Hopup Chamber is a precision-machined upgrade designed for ASG 2018 CZ Scorpion EVO-3 airsoft rifles. It delivers repeatable hop-up control and enhanced consistency for players who demand reliable accuracy in every shot.

• Premium CNC Aluminum Construction: Machined from a solid aircraft-grade aluminum block with tight tolerances for superior accuracy, durability, and repeatable performance.
• Compatibility and Fit: Specifically designed to fit ASG 2018 CZ Scorpion EVO-3 gearboxes with an 11.5mm inlet and 12mm hub diameter, while remaining compatible with a wide range of aftermarket buckings.
• Integrated Precision Rotary Dial Knob: Built-in aluminum dial for precise, repeatable hop-up adjustments without tools.
• Pre-Installed Bucking Nub: Includes a pre-installed 4mm flat soft nub (6mm nub option available) optimized for R-Hop and standard-hop to maximize consistency on every shot.
• Self-Centring Inlet: Ensures the hop-up unit sits perfectly in the 11.5mm inner bore, reducing wobble and misalignment during use.
• Delrin Locking C-Clip: Provides a secure, wobble-free hold on the inner barrel for reliable performance over time.
• 18.5mm Nozzle Length Support: Specifically engineered to accept the 18.5mm nozzle length while maintaining FPS stability with most buckings.
• Optional Dual UV LED Tracer Module: Ready for low-light tracing with an optional UV LED module to glow BBs in the dark (sold separately).
• Comprehensive Included Kit: Everything you need is included—from the EVO chamber and bucking nubs to springs, spacers, O-rings, and the locking hardware.

The Dual UV LED Tracer Module is an add-on option to glow BBs in the dark. It supports operating voltage from 7V to 15V (2–4 cells LiPo, 6–13 cells NiCad) and is sold separately. Test results indicate a potential FPS increase of 10–30 FPS over the stock setup, depending on your configuration and airsoft rifle. This Evo-3 chamber is built to deliver consistent performance across a variety of buckings and setups, making it a solid choice for players who value accuracy and reliability in both CQB and field environments.

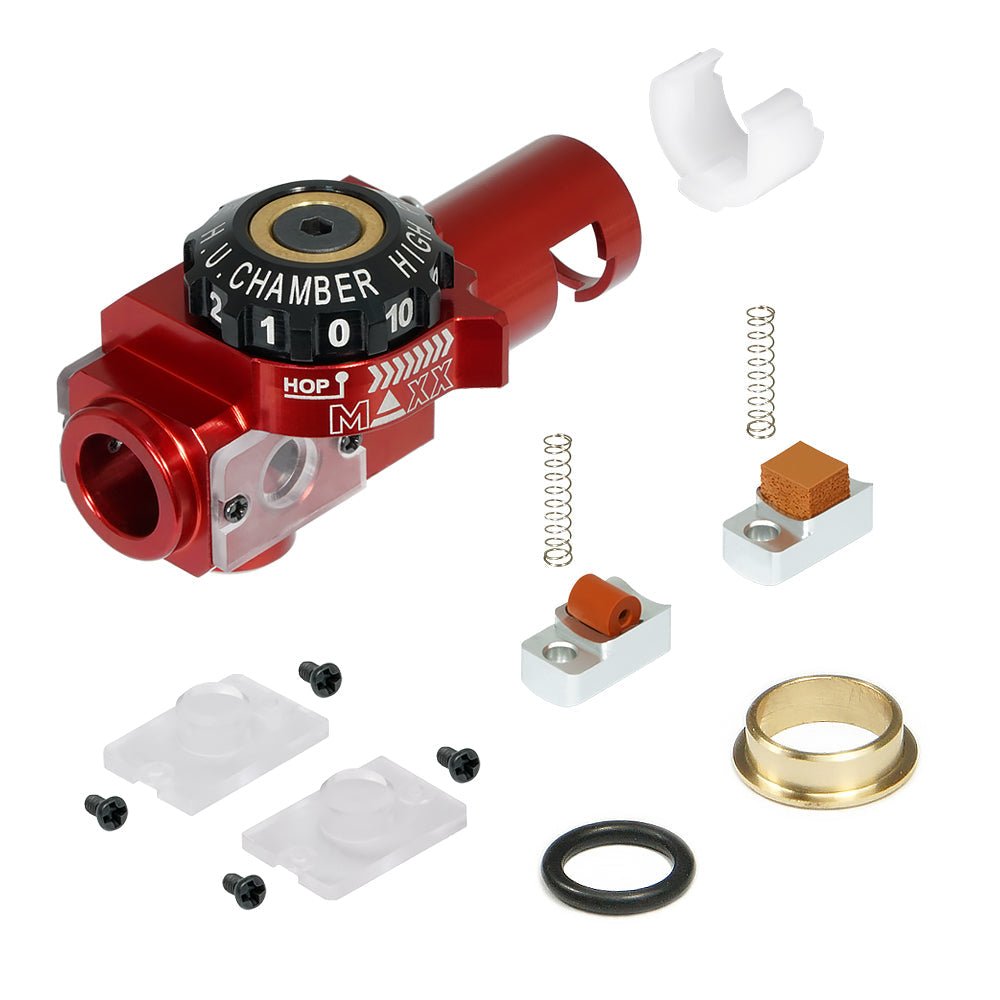

	Includes
	1 x CNC Aluminum Hopup Chamber EVO unit
	1 x Dual UV LED Boards and Module set (optional)
	2 x Strong Clear Vinyl Cover set
	1 x CNC Aluminum Soft Round Nub
	1 x CNC Aluminum Soft Flat Nub (4mm) (Pre-installed)
	2 x Steel Nub Spring
	1 x Steel Compression Spring
	1 x Brass Dial Bushing
	1 x Dial O-ring
	1 x CNC Precision Aluminum Rotary Dial Knob
	1 x CNC Delrin Locking C-Clip
	1 x CNC Brass Barrel Spacer
	1 x Brass Barrel Spacer Holder O-ring

	Overall Length: 47mm
	Overall Height: 26.25mm
	Inlet Diameter: 11.5mm
	Hub Outer Diameter (to fit into Outer Barrel): 12mm
	Hub Inner Diameter (to fit Nozzle): 7mm
	Material: Brass/Aluminum 6061

	Features
	Machined from a solid aircraft aluminium block with tight tolerances to achieve the most accuracy, consistency, and durability
	Performed accurately and consistently on the ASG 2018 CZ Scorpion EVO-3 Airsoft Rifles
	Built-in Precision Aluminum Rotary Dial Knob for fine hopup adjustments
	Pre-installed 4mm Flat Soft Bucking Nub (6mm Bucking Nub is optional) to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot
	Accepted the 18.5mm nozzle length
	Fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BB during use
	Wisely built with a self-centring inlet to ensure the hopup unit is inserted exactly in the center of the 11.5mm inner bore ASG EVO-3 gearbox outlet without wobbling
	Included an advanced CNC Delrin Locking C-Clip to hold the inner barrel tight in place without wobbling and twisting
	The Dual UV LED Tracer Module to glow BB in the dark is ready! (not included)
